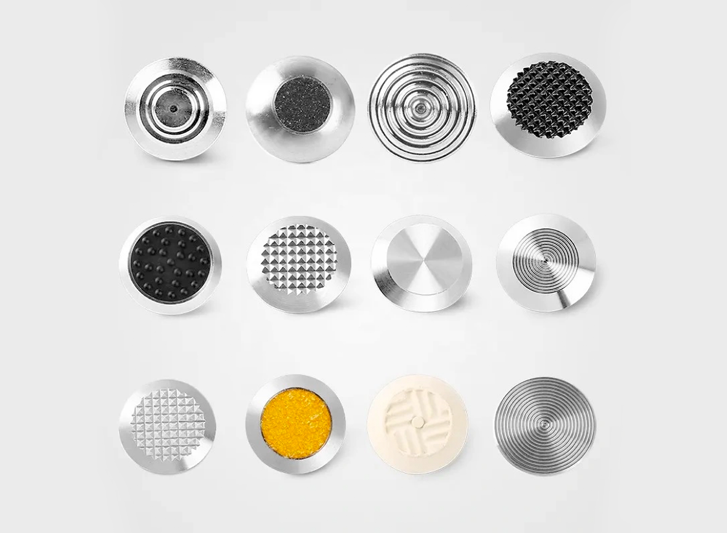

Stainless Steel Studs
usage
Tactile studs are surface-mounted tactile warning studs manufactured in accordance with the international standard ISO 23599:2012. Available in various versions and colors, these stainless steel tactile studs serve as a tactile orientation system for blind and visually impaired people, suitable for both indoor and outdoor applications. Also available: Bicycle Tactile for Tracks, Domed Shape Tactile for Roads, and Ringed Tactile Studs. As a trusted stainless steel studs manufacturer and stainless steel studs supplier, we offer SS tactile studs in adhesive and pin-fixing types to suit any project requirement.
Detailed Specifications
Product Type | Model | Material | Design | Finish | Dimension | Fixing Type |
Tactile Studs | ATS30SS-R-ADH | SS316 | Ring Top | Satin SS Finish | 30mm X 4mm | Adhesive Tape Type |
Tactile Studs | ATS35SS-D-ADH | SS316 | Diamond Top | Satin SS Finish | 35mm X 4mm | Adhesive Tape Type |
Tactile Studs | ATS30SS-R-PIN | SS316 | Ring Top | Satin SS Finish | 30mm X 4mm | Pin Type |
Tactile Studs | ATS35SS-D-PIN | SS316 | Diamond Top | Satin SS Finish | 35mm X 4mm | Pin Type |
technical drawing
Types
Ring Top

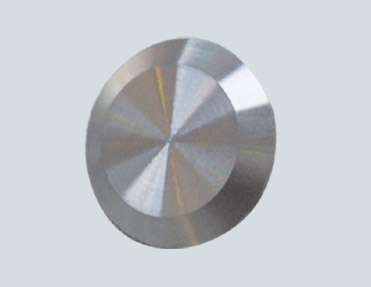

Mirror Top
diamond TOP

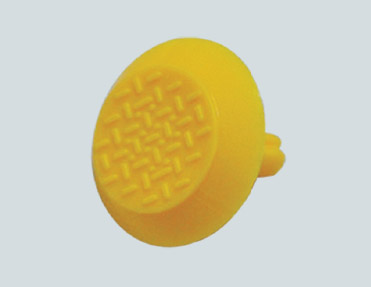

DIAMOND TOP YELLOW PLASTIC
DIAMOND TOP BLUE PLASTIC

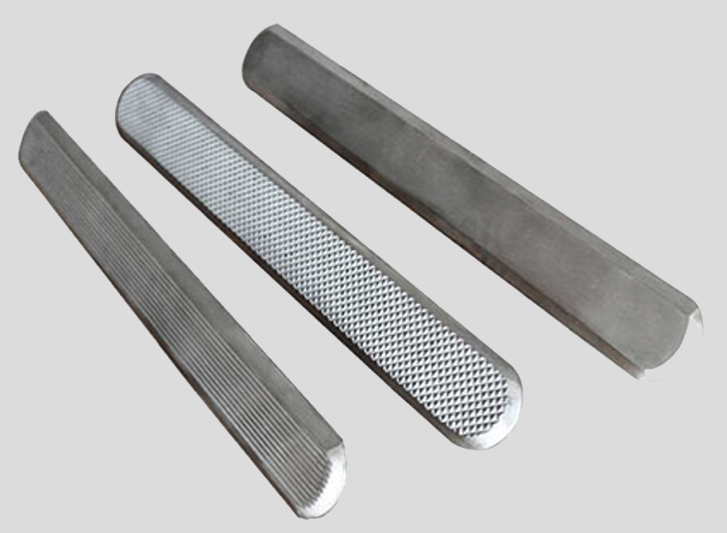

Stainless Steel Strips
usage
Detailed Specifications
| Product Type | Model | Material | Design | Finish | Dimension | Fixing Type |
| Tactile Strip | ATS28040SS-LIN-ADH | SS316 | Linear Top | Satin SS Finish | 280mm X 40mm | Adhesive Tape Type |
| Tactile Strip | ATS28035SS-D-PIN | SS316 | Diamond Top | Satin SS Finish | 280mm X 35mm | Pin Type |
technical drawing

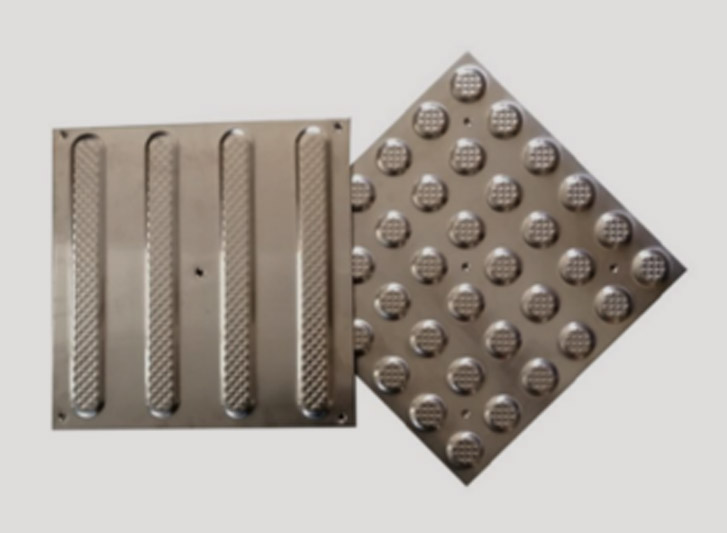

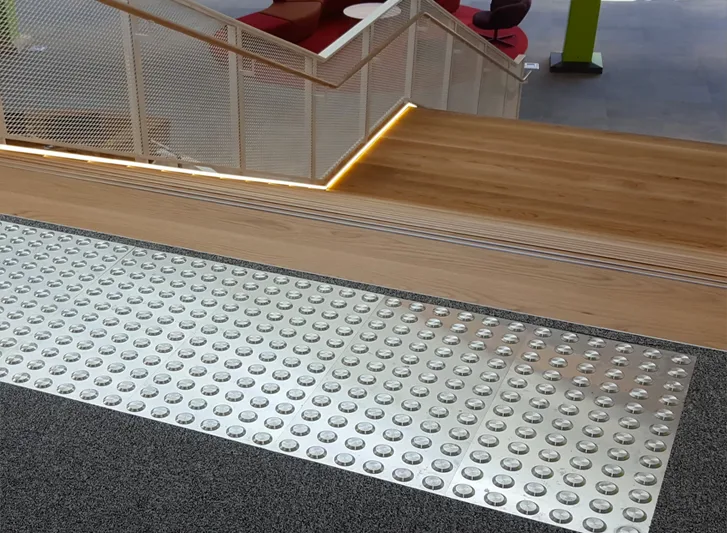

Stainless Steel Tactile Tiles
usage
The stainless steel tactile plate from Warrior is made of 316 marine-grade stainless steel, engineered for both indoor and outdoor application. Each stainless steel tactile tile features a unique tile-size design that makes installation straightforward and alignment accurate. Available as a complete stainless steel tactile plate with stud or strip embossment patterns, these tiles provide a durable and long-lasting tactile warning surface.
Detailed Specifications
Product Type | Model | Material | Design | Finish | Dimension | Fixing Type |
SS Tactile Tile – Studs | ASS3030-STD-SS | SS316 | 5 X 5 Stud Embossment | Satin SS Finish | 300mm X 300mm | Adhesive Tape Type |
SS Tactile Tile – Studs | ASS3030-STRP-SS | SS316 | 4 Strip Embossment | Satin SS Finish | 300mm X 300mm | Adhesive Tape Type |
technical drawing

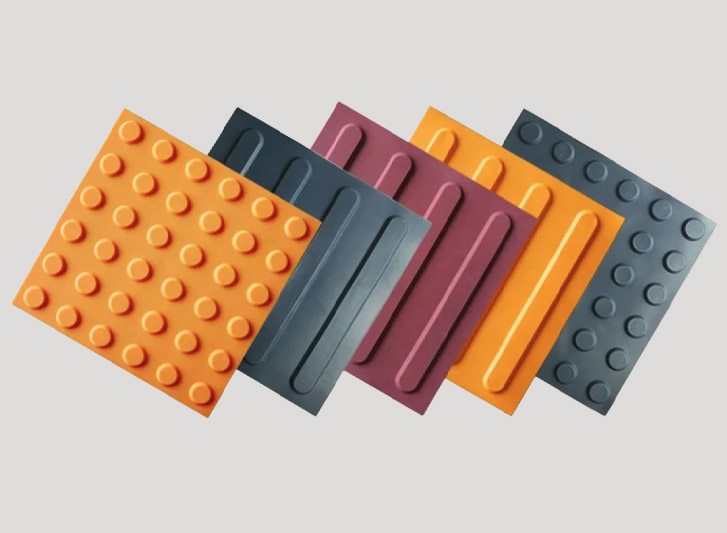

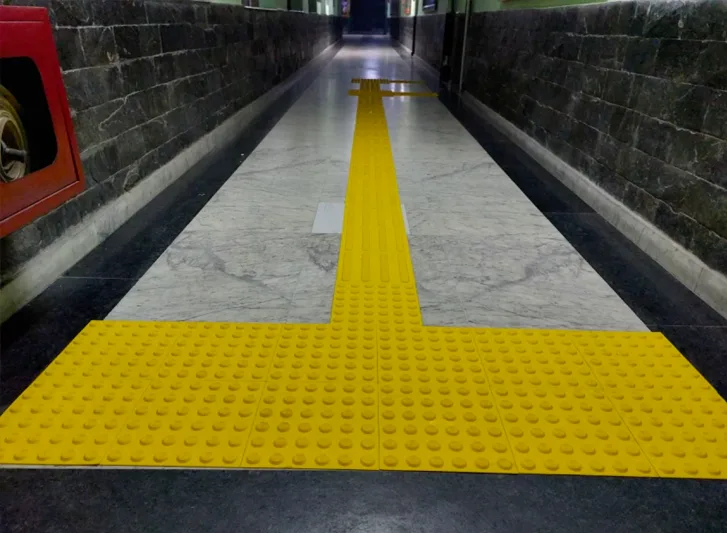

TPU Tactile Tiles
usage
Detailed Specifications
Product Type | Model | Material | Design | Finish | Dimension | Fixing Type |
TPU Tactile Tiles – Studs | ATPU3030-STD-BK | TPU | 6 X 6 Stud Embossment | Black | 300mm X 300mm | Adhesive Tape Type |
TPU Tactile Tiles – Studs | ATPU3030-STD-O | TPU | 6 X 6 Stud Embossment | Orange | 300mm X 300mm | Adhesive Tape Type |
TPU Tactile Tiles – Studs | ATPU3030-STRP-BK | TPU | 4 Strip Embossment | Black | 300mm X 300mm | Adhesive Tape Type |
TPU Tactile Tiles – Studs | ATPU3030-STRP-O | TPU | 4 Strip Embossment | Orange | 300mm X 300mm | Adhesive Tape Type |
technical drawing

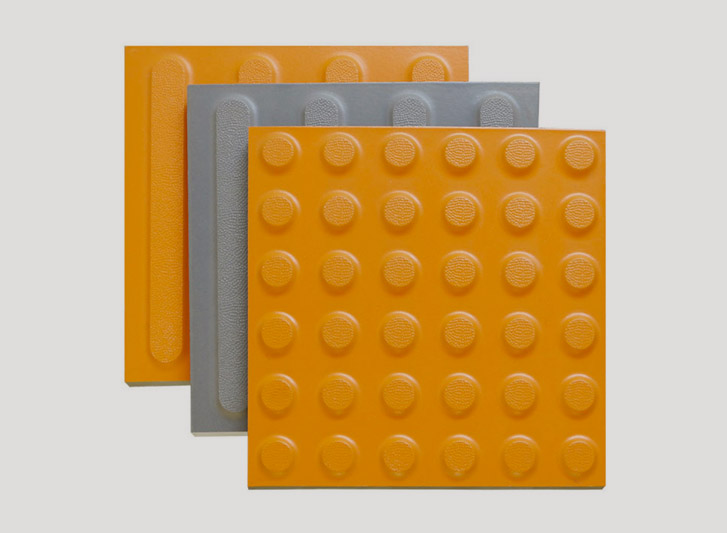

Ceramic Tactile Tile
usage
Detailed Specifications
|
Product Type |
Model |
Material |
Design |
Finish |
Dimension |
Fixing Type |
|
Ceramic Tactile Tiles – Studs |
ACRM3030-STD-Y |
Ceramic Tile |
6 X 6 Stud Embossment |
Yellow |
300mm X 300mm X 15mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM3030-STRP-Y |
Ceramic Tile |
4 Strip Embossment |
Yellow |
300mm X 300mm X 15mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM3030-STD-GRY |
Ceramic Tile |
6 X 6 Stud Embossment |
Grey |
300mm X 300mm X 15mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM3030-STRP-GRY |
Ceramic Tile |
4 Strip Embossment |
Grey |
300mm X 300mm X 15mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM4040-STD-Y |
Ceramic Tile |
6 X 6 Stud Embossment |
Yellow |
400mm X 400mm X 20mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM4040-STRP-Y |
Ceramic Tile |
6 Strip Embossment |
Yellow |
400mm X 400mm X 20mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM4040-STD-GRY |
Ceramic Tile |
6 X 6 Stud Embossment |
Grey |
400mm X 400mm X 20mm Thick |
Tile Fixing Type |
Ceramic Tactile Tiles – Studs |
ACRM4040-STRP-GRY |
Ceramic Tile |
6 Strip Embossment |
Grey |
400mm X 400mm X 20mm Thick |
Tile Fixing Type |

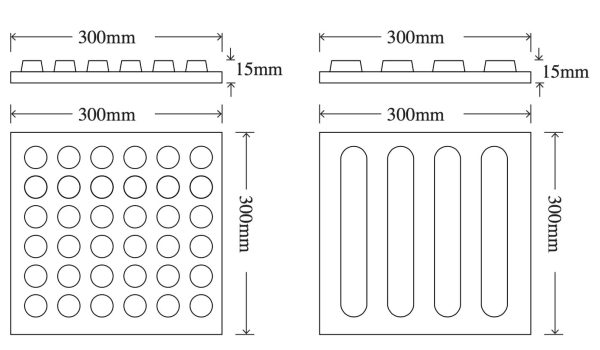

technical drawing
Find the Right Tactile Warning Studs for Your Project

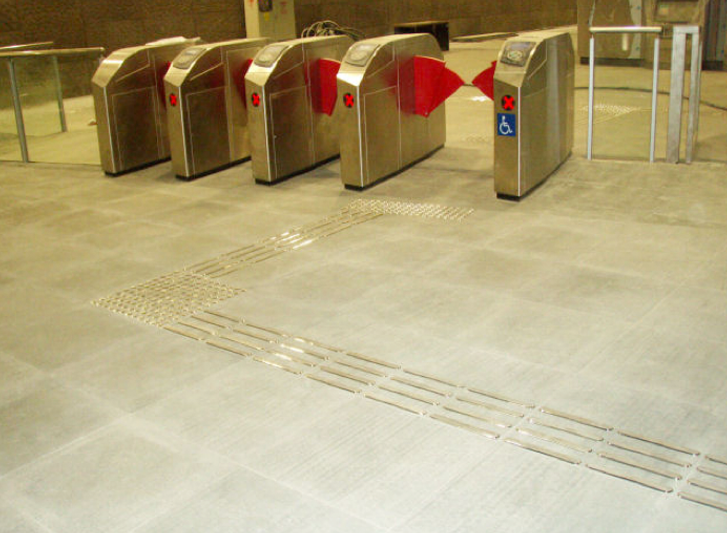

Whether you need stainless steel tactile studs for a transit platform, ceramic tactile tiles for a public walkway, or stainless steel strips for stairway edges, Warrior Wall Protection Systems offers a complete range of tactile warning solutions built to international standards. As a leading stainless steel strips supplier and stainless steel studs supplier in the UAE and GCC, we deliver stainless tactiles that combine durability with precise accessibility compliance. Contact us today to request a quote or discuss your specification requirements.
